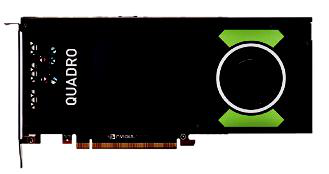

Extreme Visual Computing Performance in a Single Slot Form Factor.

The NVIDIA Quadro P4000 combines a 1792 CUDA core Pascal GPU, large 8 GB GDDR5 memory and advanced display technologies to deliver the performance and features that are required by demanding professional applications. The ability to create an expansive visual workspace of up to four 5K displays (5120x2880 @ 60Hz) with HDR color support lets you view your creations in stunning detail. The P4000 is specially designed with the performance that is necessary to drive immersive VR environments. Additionally, you can create massive digital signage solutions of up to thirty-two 4K displays per system by connecting multiple P4000s via Quadro Sync II2.

Quadro cards are certified with a broad range of sophisticated professional applications, tested by leading workstation manufacturers, and backed by a global team of support specialists. This gives you the peace

of mind to focus on doing your best work. Whether you’re developing revolutionary products or telling spectacularly vivid visual stories, Quadro gives you the performance to do it brilliantly.









FEATURES

> Four DisplayPort 1.4 Connectors1
> DisplayPort with Audio

> 3D Stereo Support with Stereo Connector1
> NVIDIA GPUDirect™ Support

> Quadro Sync II2 Compatibility

> NVIDIA nView® Desktop Management Software
> HDCP 2.2 Support

> NVIDIA Mosaic3

> NVIDIA Iray and MentalRay Support

SPECIFICATIONS



GPU Memory	8 GB GDDR5
Memory Interface	256-bit
Memory Bandwidth	Up to 243 GB/s
NVIDIA CUDA® Cores	1792
System Interface	PCI Express 3.0 x16
Max Power Consumption	105 W
Thermal Solution	Active
Form Factor	4.4” H x 9.5” L,
	Single Slot, Full Height
Display Connectors	4x DP 1.4
Max Simultaneous	4 direct, 4 DP 1.4
Displays	Multi-Stream
Display Resolution	4x 4096x2160 @ 120Hz
	4x 5120x2880 @ 60Hz
Graphics APIs	Shader Model 5.1,
	OpenGL 4.54,
	DirectX 12.05,
	Vulkan 1.04
Compute APIs	CUDA, DirectCompute,
	OpenCL™
