The Perfect Balance of Superb Performance, Compelling Features, and Compact Form Factor.

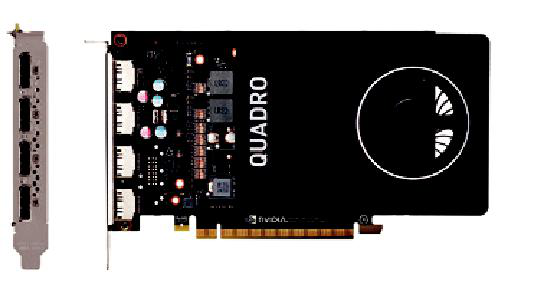

The Quadro P2000 is the perfect balance of performance, compelling features, and compact form factor delivering incredible creative experience and productivity across a variety of professional 3D applications. It features a Pascal GPU with 1024 CUDA cores, large 5 GB GDDR5 on-board memory, and the power to drive up to four 5K (5120x2880 @ 60Hz) displays natively. This makes it an excellent choice for accelerating product development and content creation workflows that demand fluid interactivity with large, complex 3D models and scenes.
Quadro cards are certified with a broad range of sophisticated professional applications, tested by leading workstation manufacturers, and backed by a global team of support specialists. This gives you the peace of mind to focus on doing your best work. Whether you’re developing revolutionary products or telling spectacularly vivid visual stories, Quadro gives you the performance to do it brilliantly.
FEATURES
> Four DisplayPort 1.4 Connectors1
> DisplayPort with Audio
> NVIDIA nView™ Desktop Management Software
> HDCP 2.2 Support
> NVIDIA Mosaic2
> NVIDIA Iray and MentalRay Support
SPECIFICATIONS
The Quadro P2000 is the perfect balance of performance, compelling features, and compact form factor delivering incredible creative experience and productivity across a variety of professional 3D applications. It features a Pascal GPU with 1024 CUDA cores, large 5 GB GDDR5 on-board memory, and the power to drive up to four 5K (5120x2880 @ 60Hz) displays natively. This makes it an excellent choice for accelerating product development and content creation workflows that demand fluid interactivity with large, complex 3D models and scenes.
Quadro cards are certified with a broad range of sophisticated professional applications, tested by leading workstation manufacturers, and backed by a global team of support specialists. This gives you the peace of mind to focus on doing your best work. Whether you’re developing revolutionary products or telling spectacularly vivid visual stories, Quadro gives you the performance to do it brilliantly.
FEATURES
> Four DisplayPort 1.4 Connectors1
> DisplayPort with Audio
> NVIDIA nView™ Desktop Management Software
> HDCP 2.2 Support
> NVIDIA Mosaic2
> NVIDIA Iray and MentalRay Support
SPECIFICATIONS
| GPU Memory | 5 GB GDDR5 |
| Memory Interface | 160-bit |
| Memory Bandwidth | Up to 140 GB/s |
| NVIDIA CUDA® Cores | 1024 |
| System Interface | PCI Express 3.0 x16 |
| Max Power Consumption | 75 W |
| Thermal Solution | Active |
| Form Factor | 4.4” H x 7.9” L, Single |
| Slot | |
| Display Connectors | 4x DP 1.4 |
| Max Simultaneous | 4 direct, 4 DP 1.4 |
| Displays | Multi-Stream |
| Display Resolution | 4x 4096x2160 @ 120Hz |
| 4x 5120x2880 @ 60Hz | |
| Graphics APIs | Shader Model 5.1, |
| OpenGL 4.53, | |
| DirectX 12.04, | |
| Vulkan 1.03 | |
| Compute APIs | CUDA, DirectCompute, |
| OpenCL™ | |
1 VGA/DVI/HDMI support via adapter/connector | 2 Windows 7, 8, 8.1, 10 | 3 Product is based on a published Khronos Specification and is expected to pass the Khronos Conformance Testing Process when available. Current conformance status can be found at www. khronos.org/conformance | 4 GPU supports DX 12 API Hardware Feature Level 12_1
© 2017 NVIDIA Corporation. All rights reserved. NVIDIA, the NVIDIA logo, Quadro, nView, CUDA, NVIDIA Pascal, and 3D Vision are trademarks and/ or registered trademarks of NVIDIA Corporation in the U.S. and other countries. OpenCL is a trademark of Apple Inc. used under license to the Khronos Group Inc. All other trademarks and copyrights are the property of their respective owners.
NVIDIA Quadro P2000 | Data Sheet | Feb17
